KRS - 12003 FULL AUTOMATIC BLOCK MACHINE: is designed with a ground mortar central system according to the automatic operating system. It is designed for continuous operation on a 24 hour basis. We offer manufacturing in different automation models and capacities. With its special motor, it has a high production speed and capacity. By simply changing the mold, it is capable of producing various types of blokcs, including standard blocks, foam concrete blocks, curb stones, hollow chimney blocks, and ready-mixed concrete, with a height range from 5 cm to 25 cm. Technical specifications, capacity, and installation diagrams are provided below. The machine has the capacity to produce 17.280 Pieces (20*40*20 cm) of Blocks per day (8 hours of operation).

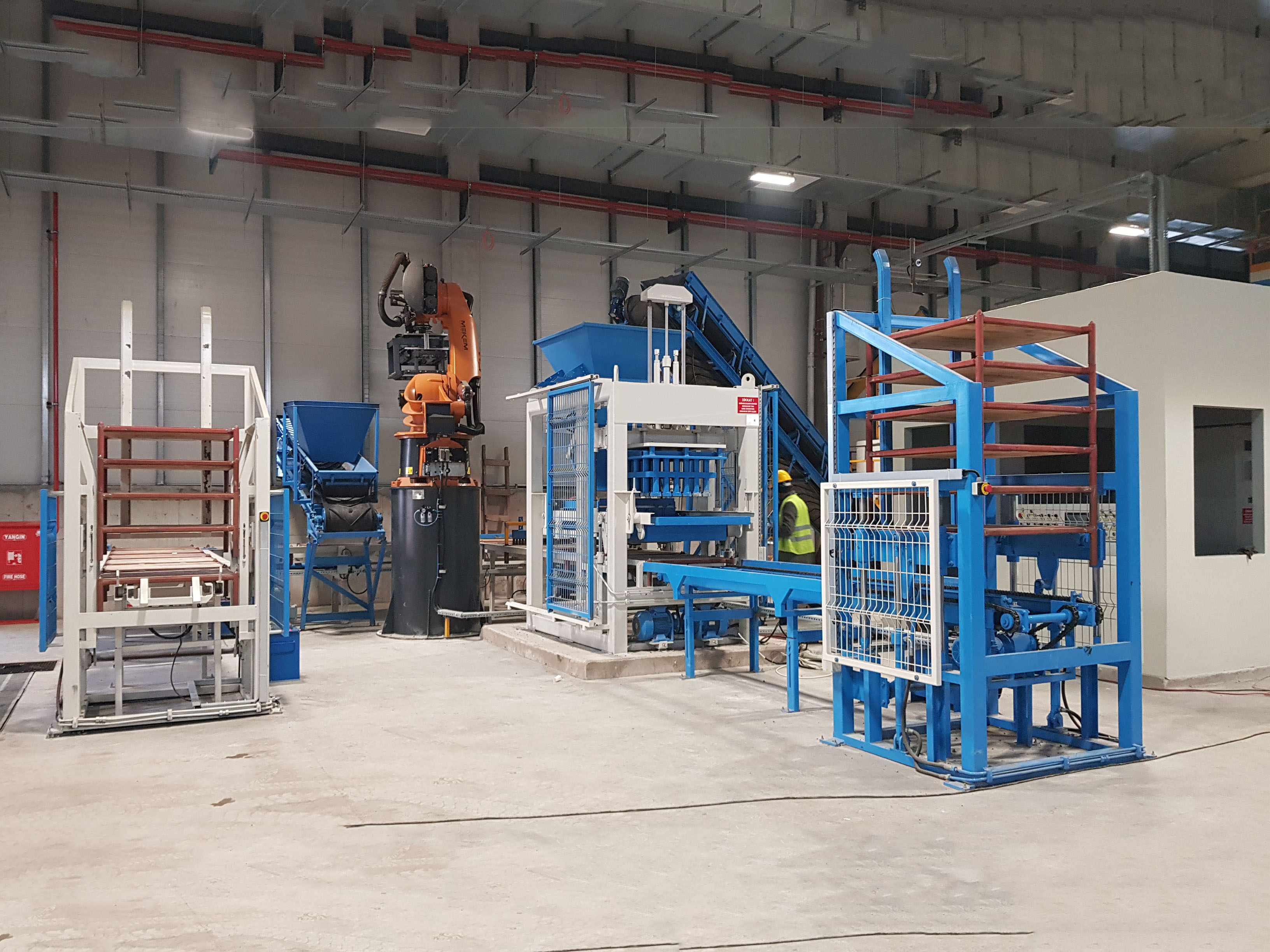

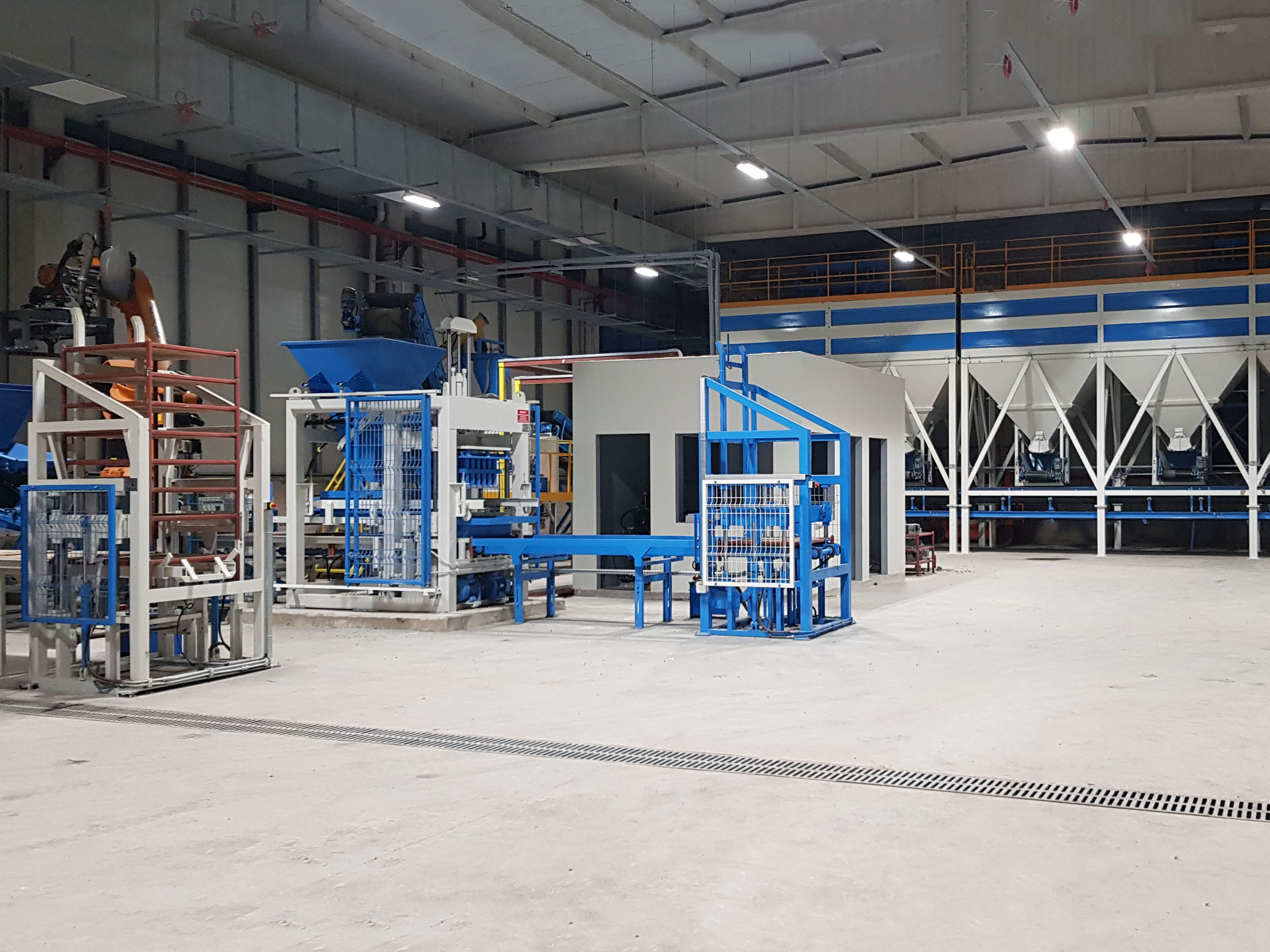

KRS - 12003 FULL AUTOMATIC BLOCK MACHINE: Our facility is produced as a "turn key" complete plant. It does not require any additional equipment except for curing and product resting rooms. For a plant with these specifications, we recommend a minimum installation area, including resting and storage, of 1.500 m². There is no obligation for a closed area. The concrete floor area should constitute at least 1/3 of the total plant area.
Control System Full Automatic / PLC Hydraulic Control System |
Hour Production Capacity 180 - 220 Pallet / Hour |
Working Time 7 / 24 Hour ( Optional ) |
Pallet Dimensions Footed Pallet: 1450 x 980 x 40 mm |
Electrical System Schneider – Siemens – ABB |
Total Electrical Power 220 kW |
Machine Dimensions 2250 x 2350 x 2500 mm |
Chasiss Dimensions 200 x 200 x 10 mm Box Profile |
Lower Vibration Motor Power 11 kW x 2 Piece |
Mortar Bucket Single Hopper / 1,5 m³ |
Hydraulic Pressure 260 Bar |
Working Pressure 180 Bar |
Hydraulic Motor Power 22 kw |
Hydraulic Oil Tank Capacity 350 LT |
Vibration Cooling Capacity 35.000 Kcal |
BLOCK TYPE |
DIMENSIONS |
CAPACITY DETAILS |
Hollow Block or Solid Block |
100 x 400 x 200 mm |
Per Pallet : 18 Piece / 8 Hour Capacity : 25.920 Piece |
Hollow Block or Solid Block | 150 x 400 x 200 mm |
Per Pallet : 16 Piece / 8 Hour Capacity : 23.040 Piece |
Hollow Block or Solid Block |
200 x 400 x 200 mm | Per Pallet : 12 Piece / 8 Hour Capacity : 17.280 Piece |
Hollow Block or Solid Block |
250 x 400 x 200 mm | Per Pallet : 10 Piece / 8 Hour Capacity : 14.400 Piece |
